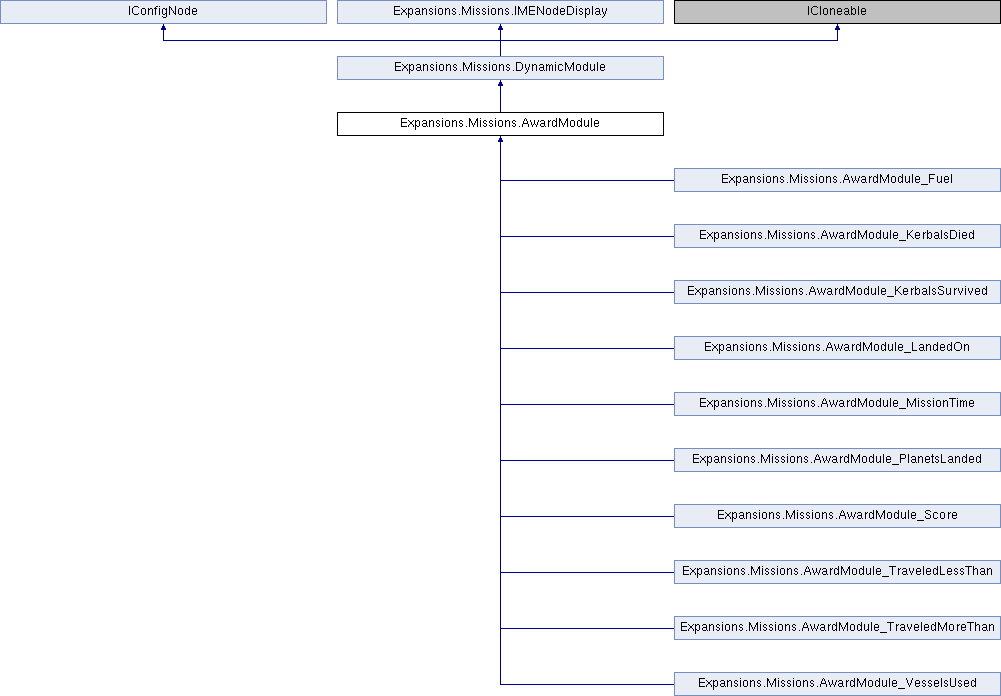

Inheritance diagram for Expansions.Missions.AwardModule:

Public Member Functions
	AwardModule (MENode node)
	Creates a new instance of this AwardModule More...

	AwardModule (MENode node, AwardDefinition definition)
	Creates a new instance of this AwardModule More...

void	EvaluateAward (Mission mission, ref List< string > awards)
	Evaluates if this award has been awarded, updates the mission score and updates the awards list for this mission More...

override string	GetDisplayName ()
	Get the display name of this award More...

override void	Load (ConfigNode node)

override void	Save (ConfigNode node)

virtual void	StartTracking ()
	Start the awards progress tracking More...

virtual void	StopTracking ()
	Stop the awards progress tracking More...

Public Member Functions inherited from Expansions.Missions.DynamicModule
void	AddParameterToNodeBody (string parameter)
	Add a parameter to be displayed in the node body Used for batch processing node body parameters If you want an immediate UI update, use AddParameterToNodeBodyAndUpdateUI More...

void	AddParameterToNodeBodyAndUpdateUI (string parameter)
	Add a parameter to be displayed in the node body Then updates the UI on the node body More...

void	AddParameterToSAP (string parameter)
	Add a parameter to be displayed in the Settings Action Pane More...

virtual object	Clone ()

virtual void	Destroy ()
	Perform all the cleaning operations that we need before the module is destroyed. More...

	DynamicModule ()

	DynamicModule (MENode node)
	Creates a new instance of this dynamic module More...

override bool	Equals (object obj)

virtual List< string >	GetDefaultPinnedParameters ()
	Get a list of default node pinned parameters for this dynamic module More...

virtual string	GetDisplayToolTip ()
	Get the tooltip for this module UI More...

override int	GetHashCode ()

virtual string	GetInfo ()
	Get the information to be displayed about the module in the tooltip. More...

List< IMENodeDisplay >	GetInternalParametersToDisplay ()
	Gets some more parameters to display. More...

string	GetName ()
	Get the name of the action module More...

MENode	GetNode ()
	Get the linked Mission node. More...

virtual string	GetNodeBodyParameterString (BaseAPField field)
	Returns the string to be displayed when the parameter is displayed in the node body More...

bool	HasNodeBodyParameter (string parameter)
	Evaluates if the parameter is present in the node body display parameters More...

bool	HasSAPParameter (string parameter)
	Evaluates if the parameter is present in the SAP More...

virtual void	Initialize ()
	Perform all the setup operations that we need when the module is initialised in the mission builder. More...

virtual void	ParameterSetupComplete ()
	Can be used as a hook once all the parameters in a module have been setup and/or displayed in the SAP. More...

void	RemoveParameterFromNodeBody (string parameter)
	Add a parameter to be displayed in the node body Used for batch processing node body parameters If you want an immediate UI update, use AddParameterToNodeBodyAndUpdateUI More...

void	RemoveParameterFromNodeBodyAndUpdateUI (string parameter)
	Removes a parameter to be displayed in the node body Then updates the UI on the node body More...

void	RemoveParameterFromSAP (string parameter)
	Remove a parameter to be displayed in the Settings Action Pane More...

void	SetNode (MENode node)
	Sets the linked Mission Node More...

void	UpdateNodeBodyUI ()
	Updates the node body parameters More...

Public Attributes
bool	enabled
	Is this award enabled More...

float	score
	Bonus score granted for this award More...

Public Attributes inherited from Expansions.Missions.DynamicModule
List< string >	parametersDisplayedInSAP
	The parameters displayed in the Settings Action Pane More...

Protected Member Functions
virtual bool	EvaluateCondition (Mission mission)
	Evaluates the internal condition for this award More...

Protected Attributes
string	awardID

Protected Attributes inherited from Expansions.Missions.DynamicModule
MENode	node
	Refernce to the Node that the action is part of More...

Properties
AwardDefinition	Definition `[get]`
	Award defintition for this award More...

Properties inherited from Expansions.Missions.DynamicModule
virtual bool	canBeDisplayedInEditor `[get]`
	Does this dynamic module can be displayed in the editor More...

string	id `[get, set]`
	Id of this dynamic module instance, this is a unique autogenerated number to diferenciate mutliple instance of the same type More...

string	name `[get, set]`
	the name of the module class More...

Constructor & Destructor Documentation

Expansions.Missions.AwardModule.AwardModule ( MENode node )

inline

Creates a new instance of this AwardModule

Parameters

missionScoreable

Expansions.Missions.AwardModule.AwardModule	(	MENode	node,
		AwardDefinition	definition
	)

inline

Creates a new instance of this AwardModule

Parameters

missionScoreable

Member Function Documentation

void Expansions.Missions.AwardModule.EvaluateAward	(	Mission	mission,
		ref List< string >	awards
	)

inline

Evaluates if this award has been awarded, updates the mission score and updates the awards list for this mission

Parameters

mission	Current mission
awards	List of earned awards

Returns

virtual bool Expansions.Missions.AwardModule.EvaluateCondition ( Mission mission )

inlineprotectedvirtual

Evaluates the internal condition for this award

Parameters

mission Current mission

Returns

Reimplemented in Expansions.Missions.AwardModule_Fuel, Expansions.Missions.AwardModule_LandedOn, Expansions.Missions.AwardModule_PlanetsLanded, Expansions.Missions.AwardModule_VesselsUsed, Expansions.Missions.AwardModule_TraveledLessThan, Expansions.Missions.AwardModule_TraveledMoreThan, Expansions.Missions.AwardModule_MissionTime, Expansions.Missions.AwardModule_KerbalsSurvived, Expansions.Missions.AwardModule_Score, and Expansions.Missions.AwardModule_KerbalsDied.

override string Expansions.Missions.AwardModule.GetDisplayName ( )

inlinevirtual

Get the display name of this award

Returns

Reimplemented from Expansions.Missions.DynamicModule.

override void Expansions.Missions.AwardModule.Load ( ConfigNode node )

inlinevirtual

Reimplemented from Expansions.Missions.DynamicModule.

Reimplemented in Expansions.Missions.AwardModule_Fuel, Expansions.Missions.AwardModule_LandedOn, Expansions.Missions.AwardModule_PlanetsLanded, Expansions.Missions.AwardModule_TraveledLessThan, Expansions.Missions.AwardModule_TraveledMoreThan, Expansions.Missions.AwardModule_VesselsUsed, Expansions.Missions.AwardModule_KerbalsSurvived, Expansions.Missions.AwardModule_Score, and Expansions.Missions.AwardModule_MissionTime.

override void Expansions.Missions.AwardModule.Save ( ConfigNode node )

inlinevirtual

Reimplemented from Expansions.Missions.DynamicModule.

Reimplemented in Expansions.Missions.AwardModule_Fuel, Expansions.Missions.AwardModule_LandedOn, Expansions.Missions.AwardModule_VesselsUsed, Expansions.Missions.AwardModule_PlanetsLanded, Expansions.Missions.AwardModule_TraveledLessThan, Expansions.Missions.AwardModule_TraveledMoreThan, Expansions.Missions.AwardModule_KerbalsSurvived, Expansions.Missions.AwardModule_Score, and Expansions.Missions.AwardModule_MissionTime.

virtual void Expansions.Missions.AwardModule.StartTracking ( )

inlinevirtual

Start the awards progress tracking

Reimplemented in Expansions.Missions.AwardModule_Fuel, Expansions.Missions.AwardModule_TraveledLessThan, Expansions.Missions.AwardModule_TraveledMoreThan, Expansions.Missions.AwardModule_PlanetsLanded, Expansions.Missions.AwardModule_VesselsUsed, and Expansions.Missions.AwardModule_KerbalsSurvived.

virtual void Expansions.Missions.AwardModule.StopTracking ( )

inlinevirtual

Stop the awards progress tracking

Reimplemented in Expansions.Missions.AwardModule_Fuel, Expansions.Missions.AwardModule_TraveledLessThan, Expansions.Missions.AwardModule_TraveledMoreThan, Expansions.Missions.AwardModule_PlanetsLanded, Expansions.Missions.AwardModule_VesselsUsed, and Expansions.Missions.AwardModule_KerbalsSurvived.

Member Data Documentation

string Expansions.Missions.AwardModule.awardID

protected

bool Expansions.Missions.AwardModule.enabled

Is this award enabled

float Expansions.Missions.AwardModule.score

Bonus score granted for this award

Property Documentation

AwardDefinition Expansions.Missions.AwardModule.Definition

get

Award defintition for this award

The documentation for this class was generated from the following file:

KSP/Assets/Expansions/Missions/Scripts/AwardModule.cs
