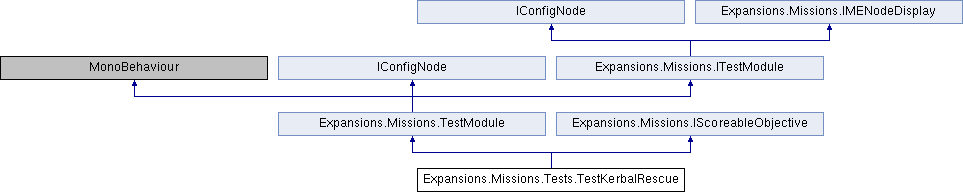

Inheritance diagram for Expansions.Missions.Tests.TestKerbalRescue:

Public Member Functions
override void	Awake ()

override void	Cleared ()
	Method to overide if you want to do stuff when a node is deactivated More...

override string	GetInfo ()
	Get the information to be displayed about the module in the tooltip. More...

override string	GetNodeBodyParameterString (BaseAPField field)
	Returns the string to be displayed when the parameter is displayed in the node body More...

object	GetScoreModifier (Type scoreModule)
	Gets the modifier value to be applied on a certain score module More...

override void	Initialize (TestGroup testGroup, string title)
	This is called Once when a TestModule component is instantiated. This is a mandatory Method and will set the MENode reference. Override this method in any action modules that require the MENode reference prior to Awake, but always call the base.Initialize More...

override void	Initialized ()
	Method to overide if you want to do stuff when a node is activated More...

override void	Load (ConfigNode node)

override void	RunValidation (MissionEditorValidator validator)
	Override this to add custom Validation checks and results to this object More...

override void	Save (ConfigNode node)

override bool	Test ()
	Tests the parameters needed for this More...

Public Member Functions inherited from Expansions.Missions.TestModule
void	AddParameterToNodeBody (string parameter)
	Add a parameter to be displayed in the node body Used for batch processing node body parameters If you want an immediate UI update, use AddParameterToNodeBodyAndUpdateUI More...

void	AddParameterToNodeBodyAndUpdateUI (string parameter)
	Add a parameter to be displayed in the node body Then updates the UI on the node body More...

void	AddParameterToSAP (string parameter)
	Add a parameter to be displayed in the Settings Action Pane More...

TestModule	ClearTest ()
	Run anything we need on Deactivating a Test More...

virtual string	GetAppObjectiveInfo ()

string	GetDisplayName ()
	Get the localized name of the node More...

virtual List< IMENodeDisplay >	GetInternalParametersToDisplay ()
	Gets some more parameters to display. More...

string	GetName ()
	Get the name of the action module More...

MENode	GetNode ()
	Get the linked Mission node. More...

bool	HasNodeBodyParameter (string parameter)
	Evaluates if the parameter is present in the node body display parameters More...

bool	HasSAPParameter (string parameter)
	Evaluates if the parameter is present in the SAP More...

TestModule	InitializeTest ()
	Run anything we need on Activating a Test More...

virtual void	OnDestroy ()

virtual void	OnPartPersistentIdChanged (uint vesselID, uint oldId, uint newId)
	Override this function to catch when a parts persistentId is changed, you should use this to update any partID references in your action where the part is in the correct vessel More...

virtual void	OnVesselDocking (uint oldId, uint newId)
	Override this function to catch when a vessels persistentId is about to change as a result of a vessel docking event. More...

virtual void	OnVesselPersistentIdChanged (uint oldId, uint newId)
	Override this function to catch when a vessels persistentId is changed, you should use this to update any vesselID references in your action More...

virtual void	OnVesselsUndocking (Vessel oldVessel, Vessel newVessel)
	Override this function to catch when a parts Vessel is changed, you should use this to update any partID/Vessel references in your action where the part is in the correct vessel More...

virtual void	ParameterSetupComplete ()
	Perform all the setup operations that we need when the module is initialised in the mission builder. More...

void	RemoveParameterFromNodeBody (string parameter)
	Add a parameter to be displayed in the node body Used for batch processing node body parameters If you want an immediate UI update, use AddParameterToNodeBodyAndUpdateUI More...

void	RemoveParameterFromNodeBodyAndUpdateUI (string parameter)
	Removes a parameter to be displayed in the node body Then updates the UI on the node body More...

void	RemoveParameterFromSAP (string parameter)
	Remove a parameter to be displayed in the Settings Action Pane More...

void	RunValidationWrapper (MissionEditorValidator validator)
	Called to run the Validation checks for this object. More...

virtual bool	ShouldCreateCheckpoint ()
	Used by the Test Mission checkpoint system to determine whether to create a checkpoint when this module fires or not. More...

void	UpdateNodeBodyUI ()
	Updates the node body parameters More...

Public Member Functions inherited from Expansions.Missions.ITestModule
void	RunValidationWrapper (Editor.MissionEditorValidator validator)

Public Attributes
MissionKerbal	missionKerbal
	Kerbal to Check More...

bool	mustBoardVessel

Public Attributes inherited from Expansions.Missions.TestModule
bool	hasOrbit = false

bool	hasWaypoint = false
	True if a WayPoint exists for this module. More...

List< string >	parametersDisplayedInSAP
	The parameters displayed in the Settings Action Pane More...

string	title = ""
	The display name for this More...

Additional Inherited Members
Properties inherited from Expansions.Missions.TestModule
string	name `[get, set]`
	the name of the module class More...

MENode	node `[get, set]`
	Refernce to the Node that the test is part of More...

TestGroup	testGroup `[get, set]`
	Refernce to the Node that the test is part of More...

Member Function Documentation

override void Expansions.Missions.Tests.TestKerbalRescue.Awake ( )

inlinevirtual

Reimplemented from Expansions.Missions.TestModule.

override void Expansions.Missions.Tests.TestKerbalRescue.Cleared ( )

inlinevirtual

Method to overide if you want to do stuff when a node is deactivated

Reimplemented from Expansions.Missions.TestModule.

override string Expansions.Missions.Tests.TestKerbalRescue.GetInfo ( )

inlinevirtual

Get the information to be displayed about the module in the tooltip.

Returns: Information to be displayed about the module in the tooltip

Reimplemented from Expansions.Missions.TestModule.

override string Expansions.Missions.Tests.TestKerbalRescue.GetNodeBodyParameterString ( BaseAPField field )

inlinevirtual

Returns the string to be displayed when the parameter is displayed in the node body

Parameters

field

Returns

Reimplemented from Expansions.Missions.TestModule.

object Expansions.Missions.Tests.TestKerbalRescue.GetScoreModifier ( Type scoreModule )

inline

Gets the modifier value to be applied on a certain score module

Parameters

scoreModule

Returns

Implements Expansions.Missions.IScoreableObjective.

override void Expansions.Missions.Tests.TestKerbalRescue.Initialize	(	TestGroup	testGroup,
		string	title
	)

inlinevirtual

This is called Once when a TestModule component is instantiated. This is a mandatory Method and will set the MENode reference. Override this method in any action modules that require the MENode reference prior to Awake, but always call the base.Initialize

Parameters

node

Reimplemented from Expansions.Missions.TestModule.

override void Expansions.Missions.Tests.TestKerbalRescue.Initialized ( )

inlinevirtual

Method to overide if you want to do stuff when a node is activated

Check if the kerbal has already been found

If it hasnt been found, suscribe to the appropiate events

Reimplemented from Expansions.Missions.TestModule.

override void Expansions.Missions.Tests.TestKerbalRescue.Load ( ConfigNode node )

inlinevirtual

Reimplemented from Expansions.Missions.TestModule.
