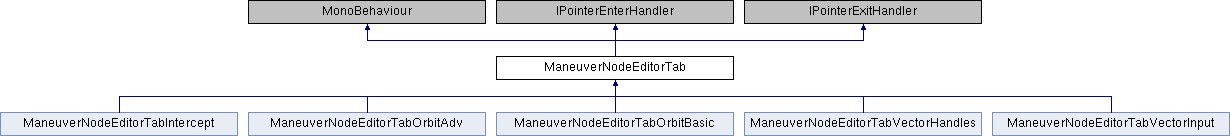

Inheritance diagram for ManeuverNodeEditorTab:

Public Member Functions
virtual bool	IsTabInteractable ()
	Is the tab interactible, override with custom logic where needed More...

void	OnPointerEnter (PointerEventData evtData)

void	OnPointerExit (PointerEventData evtData)

abstract void	SetInitialValues ()
	Assign the values to the UI elements that must be displayed ASAP More...

void	setMouseOver (bool state)

abstract void	UpdateUIElements ()
	This method is called every updateCooldownSeconds so the tab content can be updated More...

Public Attributes
ManeuverNodeEditorManager	mannodeEditorManager
	The reference to the maneuver node editor manager More...

Sprite	tabIconOff
	The icon that will be displayed in the maneuver node editor for this tab, in off state More...

Sprite	tabIconOn
	The icon that will be displayed in the maneuver node editor for this tab, in on state More...

bool	tabManagesCaption = false
	If true, the tab takes care of updating the caption. If false, the manager does it More...

string	tabName = ""
	A distinctive name for the panel More...

ManeuverNodeEditorTabPosition	tabPosition
	Defines if the tab will be used to display information or to input values. More...

string	tabTooltipCaptionActive
	The text that will be displayed in the maneuver node editor for this tab when you mouse over and the button is interactable More...

string	tabTooltipCaptionInactive
	The text that will be displayed in the maneuver node editor for this tab when you mouse over and the button is not interactable More...

float	updateCooldownSeconds = 1f
	The number of seconds to wait between UI Element updates in Update loops More...

Member Function Documentation

virtual bool ManeuverNodeEditorTab.IsTabInteractable ( )

inlinevirtual

Is the tab interactible, override with custom logic where needed

void ManeuverNodeEditorTab.OnPointerEnter ( PointerEventData evtData )

inline

void ManeuverNodeEditorTab.OnPointerExit ( PointerEventData evtData )

inline

abstract void ManeuverNodeEditorTab.SetInitialValues ( )

pure virtual

Assign the values to the UI elements that must be displayed ASAP

void ManeuverNodeEditorTab.setMouseOver ( bool state )

inline

abstract void ManeuverNodeEditorTab.UpdateUIElements ( )

pure virtual

This method is called every updateCooldownSeconds so the tab content can be updated

As most dont need to be done every frame

Member Data Documentation

ManeuverNodeEditorManager ManeuverNodeEditorTab.mannodeEditorManager

The reference to the maneuver node editor manager

Sprite ManeuverNodeEditorTab.tabIconOff

The icon that will be displayed in the maneuver node editor for this tab, in off state

Sprite ManeuverNodeEditorTab.tabIconOn

The icon that will be displayed in the maneuver node editor for this tab, in on state

bool ManeuverNodeEditorTab.tabManagesCaption = false

If true, the tab takes care of updating the caption. If false, the manager does it

string ManeuverNodeEditorTab.tabName = ""

A distinctive name for the panel

ManeuverNodeEditorTabPosition ManeuverNodeEditorTab.tabPosition

Defines if the tab will be used to display information or to input values.

string ManeuverNodeEditorTab.tabTooltipCaptionActive

The text that will be displayed in the maneuver node editor for this tab when you mouse over and the button is interactable

string ManeuverNodeEditorTab.tabTooltipCaptionInactive

The text that will be displayed in the maneuver node editor for this tab when you mouse over and the button is not interactable

float ManeuverNodeEditorTab.updateCooldownSeconds = 1f

The number of seconds to wait between UI Element updates in Update loops

The documentation for this class was generated from the following file:
