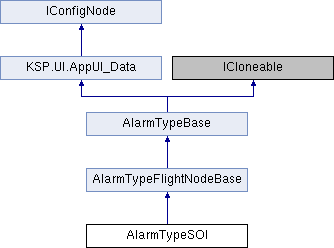

Inheritance diagram for AlarmTypeSOI:

Public Member Functions
	AlarmTypeSOI ()

override string	CannotSetAlarmText ()
	Override this to set displayText for when an alarm cannot be created More...

override bool	CanSetAlarm (AlarmUIDisplayMode displayMode)
	Method that returns whether the params of this alarm are valid for creating/Editing an alarm More...

override string	GetDefaultTitle ()
	The default string to display for this alarm types title More...

override bool	InitializeFromMapObject (MapObject mapObject)
	Called when an alarm is created from a MapNode button so you can set any values needed in the alarm More...

override MapObject.ObjectType	MapNodeType ()
	Override this with a mapnode type to More...

override bool	ShowAlarmMapObject (MapObject mapObject)
	Override this with the method that determines if an add button shoudl be shown at this time More...

Public Member Functions inherited from AlarmTypeFlightNodeBase
	AlarmTypeFlightNodeBase ()

override void	OnAlarmLoad (ConfigNode node)

override void	OnAlarmSave (ConfigNode node)

override void	OnInputPanelUpdate (AlarmUIDisplayMode displayMode)

override void	OnScenarioUpdate ()
	Update method called after base work is done by the scenario module More...

override void	OnUIEndInitialization (AlarmUIDisplayMode displayMode)
	Called when the alarm is displayed as a new alarm to edit. Occurs when teh app "Create" button is pressed More...

override void	OnUIInitialization (AlarmUIDisplayMode displayMode)
	Called when the alarm is displayed as a new alarm to edit. Occurs when teh app "Create" button is pressed More...

override bool	RequiresVessel ()
	Does this alarm require a vessel link for creation More...

Public Member Functions inherited from AlarmTypeBase
	AlarmTypeBase ()

object	Clone ()
	Generic ICloning interface implementation. More...

virtual AlarmTypeBase	CloneAlarm ()
	Clone an alarm More...

virtual void	OnActioned ()
	Method to override that will be called when an alarm is actioned More...

sealed override void	OnLoad (ConfigNode node)
	IConfigNode hook for the Load routine More...

virtual void	OnManeuversLoaded (Vessel vessel, PatchedConicSolver solver)

sealed override void	OnSave (ConfigNode node)

virtual void	OnTriggered ()
	Method to override that will be called when an alarm is triggered More...

virtual void	OnUIInputPanelDataChanged (AlarmUIDisplayMode displayMode)
	Called when the data is changed by an input panel More...

sealed override void	UIInputPanelDataChanged ()
	Called when the input fields are set and can be overridden directly in the data class to catch these there More...

sealed override void	UIInputPanelUpdate ()
	/This one takes the UIInput update and seals it so alarm types cannot override. Provides an OnInputPanelUpdate method for alarm types More...

Public Member Functions inherited from KSP.UI.AppUI_Data
void	Load (ConfigNode node)

void	Save (ConfigNode node)

Protected Member Functions
override double	GetNodeUT ()
	Method called by the basetype to get the UT of the instances Node More...

Additional Inherited Members
Static Public Member Functions inherited from KSP.UI.AppUI_Data
static List< T >	CreateAppUIDataList< T > (ConfigNode[] nodes)

static T	CreateInstanceOfAppUIData< T > (ConfigNode node)
	Creates a new part module adjuster, then loads the node information into it. More...

static T	CreateInstanceOfAppUIData< T > (string className)
	Creates a new part module adjuster. More...

Public Attributes inherited from AlarmTypeFlightNodeBase
double	marginEntry = 60

Public Attributes inherited from AlarmTypeBase
AlarmActions	actions
	Actions to take when the alarm is triggered More...

string	description = ""
	Any extra details More...

double	eventOffset = 0
	The offset (in s) from the alarm to the associated event More...

string	iconURL = "default"
	The URL path to the icon in the gamedatabase. More...

int	soundRepeatsOverride = -1
	An override to the general how many times to play the sound More...

string	soundURLOverride = ""
	An override to the general alarm sound to play More...

string	title = ""
	The shortname for the alarm More...

double	ut = 0
	The Universe Time (in s) of the alarm More...

uint	vesselId
	Vessel ID associated with this alarm More...

string	vesselName = ""

Protected Attributes inherited from AlarmTypeFlightNodeBase
Orbit	orbitCache = null

Protected Attributes inherited from KSP.UI.AppUI_Data
Callback	onDataChanged

Properties inherited from AlarmTypeBase
bool	Actioned `[get]`
	Has the alarm been actioned - ie actions were triggered and then completed or closed More...

Boolean	HaltWarp `[get]`
	Is the game to be returned to real time (1x) when an alarm is triggered More...

uint	Id `[get]`
	Unique Identifier for the alarm More...

bool	IsActive `[get]`
	Is this alarm active in the scenario list More...

bool	IsAlarmVesselTheAvailableVessel `[get]`
	Is this alarm for the alarmclockscenarios available vessel More...

bool	IsEditing `[get]`
	Is the alarm open in a UI Panel and being edited More...

bool	IsMapNodeDefined `[get]`
	Has a mapnode type been defined here More...

Boolean	PauseGame `[get]`
	Is the game to be paused when an alarm is triggered More...

Boolean	ShowMessage `[get]`
	Is a message to be shown when the alarm is triggered More...

double	TimeToAlarm `[get, set]`
	How long in UT till the alarm is triggered More...

double	TimeToEvent `[get, set]`
	How ling in UT till the event related to the alarm is - eg alarm + the offset More...

bool	Triggered `[get]`
	Has the alarm been triggered - ie passed the time of alarm and actions triggered More...

string	TypeName `[get]`
	The Typename of this alarm class More...

Vessel	Vessel `[get]`
	Vessel that the alarm is attached to More...

Constructor & Destructor Documentation

AlarmTypeSOI.AlarmTypeSOI ( )

inline

Member Function Documentation

override string AlarmTypeSOI.CannotSetAlarmText ( )

inlinevirtual

Override this to set displayText for when an alarm cannot be created

Returns

Reimplemented from AlarmTypeBase.

override bool AlarmTypeSOI.CanSetAlarm ( AlarmUIDisplayMode displayMode )

inlinevirtual

Method that returns whether the params of this alarm are valid for creating/Editing an alarm

eg If its a maneuver alarm and there is no maneuevr this would return false

Parameters

displayMode Mode of the add/edit window

Returns: true if alarm can be created

Implements AlarmTypeBase.

override string AlarmTypeSOI.GetDefaultTitle ( )

inlinevirtual

The default string to display for this alarm types title

Returns: Default Title

Implements AlarmTypeBase.

override double AlarmTypeSOI.GetNodeUT ( )

inlineprotectedvirtual

Method called by the basetype to get the UT of the instances Node

Returns: UT of the node

Implements AlarmTypeFlightNodeBase.

override bool AlarmTypeSOI.InitializeFromMapObject ( MapObject mapObject )

inlinevirtual

Called when an alarm is created from a MapNode button so you can set any values needed in the alarm

Parameters

mapObject

The object that was sent to setup the alarm/param>

Returns: True if the creation should proceed

Reimplemented from AlarmTypeBase.

override MapObject.ObjectType AlarmTypeSOI.MapNodeType ( )

inlinevirtual

Override this with a mapnode type to

Returns

Reimplemented from AlarmTypeBase.

override bool AlarmTypeSOI.ShowAlarmMapObject ( MapObject mapObject )

inlinevirtual

Override this with the method that determines if an add button shoudl be shown at this time

Parameters

mapObject The mapobject that the mmouse is now hovering

Returns: True to have the addalarm button show up

Reimplemented from AlarmTypeBase.

The documentation for this class was generated from the following file:

KSP/Assets/Scripts/AlarmClock/AlarmTypes/AlarmTypeSOI.cs
