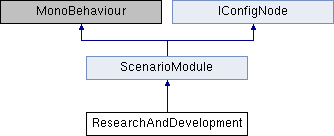

Inheritance diagram for ResearchAndDevelopment:

Public Member Functions
void	AddScience (float value, TransactionReasons reason)
	Add Science the the player Science total More...

void	CheatAddScience (float sci)

void	CheatTechnology ()

ProtoTechNode	GetTechState (string techID)
	Get the protoNode representation of this tech node. Will be null if the tech is still unavailable. More...

override void	OnAwake ()

void	OnDestroy ()

override void	OnLoad (ConfigNode node)

override void	OnSave (ConfigNode node)

void	SetScience (float value, TransactionReasons reason)

void	SetTechState (string techID, ProtoTechNode techNode)
	Sets the protoNode representation of the given tech node. Used to save a new tech after it's been unlocked. More...

void	Start ()

float	SubmitScienceData (float dataAmount, ScienceSubject subject, float xmitScalar=1.0f, ProtoVessel source=null, bool reverseEngineered=false)
	Submit Data to be converted into science. More...

float	SubmitScienceData (float dataAmount, float scienceValueRatio, ScienceSubject subject, float xmitScalar=1.0f, ProtoVessel source=null, bool reverseEngineered=false)
	Submit Data to be converted into science. More...

void	UnlockProtoTechNode (ProtoTechNode node)

Public Member Functions inherited from ScenarioModule
void	Load (ConfigNode node)

void	Save (ConfigNode node)

Static Public Member Functions

static void AddExperimentalPart (AvailablePart ap)

static bool CanAfford (float amount)

Check the the player can afford the amount of Science passed in More...

static string CheckForMissingParts ()

static string CountUniversalScience ()

static List< string > GetBiomeTags (CelestialBody cb, bool includeMiniBiomes)

Returns a list of the Biome Tags in English for a given CelestialBody More...

static List< string > GetBiomeTagsLocalized (CelestialBody cb, bool includeMiniBiomes)

Returns a list of the Biome Tags in localized format for a given CelestialBody More...

static ScienceExperiment GetExperiment (string experimentID)

Get a ScienceExperiment from known experiments More...

static List< string > GetExperimentIDs ()

static ScienceSubject GetExperimentSubject (ScienceExperiment experiment, ExperimentSituations situation, CelestialBody body, string biome, string displaybiome)

Returns a reference to the science subject concerning this experiment at the given circumstances. More...

static ScienceSubject GetExperimentSubject (ScienceExperiment experiment, ExperimentSituations situation, string sourceUId, string sourceTitle, CelestialBody body, string biome, string displaybiome)

Returns a science subject concerning this experiment and source at the given circumstances. More...

static string GetMiniBiomedisplayNameByScienceID (string TagID, bool formatted)

Returns a mini biome displayName by passed in ScienceID (LandedAt string with no spaces) More...

static string GetMiniBiomedisplayNameByUnityTag (string TagID, bool formatted)

Returns a mini biome displayName by passed in Unity Tag More...

static List< string > GetMiniBiomeTags (CelestialBody cb)

Returns a list of the MiniBiome Tags in English for a given CelestialBody More...

static List< string > GetMiniBiomeTagsLocalized (CelestialBody cb)

Returns a list of the MiniBiome Tags in English for a given CelestialBody More...

static float GetNextScienceValue (float dataAmount, ScienceSubject subject, float xmitScalar=1.0f)

Returns the scientific output of submitting the given amount of data on a subject a second time around. Use for previewing devaluation taking into account transmission loss.

Parameters

dataAmount	The Data Amount
subject	The ScienceSubject
xmitScalar	The transmission value. Omit if not transmitting

More...

static float GetReferenceDataValue (float dataAmount, ScienceSubject subject)

Returns the 'reference' value for the given amount of data on a subject. Useful for progress bars and such. More...

static string GetResults (string subjectID)

static float GetScienceValue (float dataAmount, ScienceSubject subject, float xmitScalar=1.0f)

Returns the scientific value of the given amount of data on a subject, taking into account its transmission yield More...

static float GetScienceValue (float dataAmount, float scienceValueRatio, ScienceSubject subject, float xmitScalar=1.0f)

Returns the scientific value of the given amount of data on a subject, taking into account its transmission yield More...

static List< string > GetSituationTags ()

Returns a list of the valid Experiment Situations More...

static List< string > GetSituationTagsDescriptions ()

Returns a list of Situation Tags Description attributes (localized strings of the Experiment Situations). More...

static ScienceSubject GetSubjectByID (string subjectID)

static List< ScienceSubject > GetSubjects ()

static float GetSubjectValue (float subjectScience, ScienceSubject subject)

Returns the scientific value of a subject for the given amount of science done in it. Does not actually modify the subject's value. Use for previewing devaluation and such. More...

static RDTech.State GetTechnologyState (string techID)

Find if the given tech is available More...

static string GetTechnologyTitle (string techID)

Returns localized tech title string More...

static bool IsExperimentalPart (AvailablePart ap)

static string PartAssignmentSummary ()

static bool PartModelPurchased (AvailablePart ap)

static bool PartTechAvailable (AvailablePart ap)

static void RefreshTechTreeUI ()

static void RemoveExperimentalPart (AvailablePart ap)

static bool ResearchedValidContractObjectives (params string[] objectiveTypes)

static bool ResearchedValidContractObjectives (List< string > objectiveTypes, bool copy=true)

static string ScienceTransmissionRewardString (float amount, TransactionReasons reason=TransactionReasons.ScienceTransmission)

Static Public Attributes
static Func< float, ScienceSubject, float >	GetReferenceDataValueFunc
	Overridable function for getting the reference data value of a science subject. More...

static Func< float, ScienceSubject, float >	GetSubjectValueFunc
	Overridable function for getting the value of the given science subject, given the current amount of science done for it. More...

static ResearchAndDevelopment	Instance

Properties
float	Science `[get]`

Properties inherited from ScenarioModule
int	ClassID `[get]`

string	ClassName `[get]`

BaseEventList	Events `[get]`

BaseFieldList	Fields `[get]`

Additional Inherited Members
Public Attributes inherited from ScenarioModule
ScenarioRunner	runner

ProtoScenarioModule	snapshot

List< GameScenes >	targetScenes

Member Function Documentation

static void ResearchAndDevelopment.AddExperimentalPart ( AvailablePart ap )

inlinestatic

void ResearchAndDevelopment.AddScience	(	float	value,
		TransactionReasons	reason
	)

inline

Add Science the the player Science total

Parameters

value
reason

< bottom out at a round 0. Rounding to places could leave us at up to -0.99 in the red.

static bool ResearchAndDevelopment.CanAfford ( float amount )

inlinestatic

Check the the player can afford the amount of Science passed in

Parameters

amount

Returns

void ResearchAndDevelopment.CheatAddScience ( float sci )

inline

void ResearchAndDevelopment.CheatTechnology ( )

inline

static string ResearchAndDevelopment.CheckForMissingParts ( )

inlinestatic

static string ResearchAndDevelopment.CountUniversalScience ( )

inlinestatic

static List<string> ResearchAndDevelopment.GetBiomeTags	(	CelestialBody	cb,
		bool	includeMiniBiomes
	)

inlinestatic

Returns a list of the Biome Tags in English for a given CelestialBody

Parameters

cb	The CB to query
includeMiniBiomes	True to return the minibiomes as well

Returns

static List<string> ResearchAndDevelopment.GetBiomeTagsLocalized	(	CelestialBody	cb,
		bool	includeMiniBiomes
	)

inlinestatic

Returns a list of the Biome Tags in localized format for a given CelestialBody

Parameters

cb	The CB to query
includeMiniBiomes	True to return the minibiomes as well

Returns

static ScienceExperiment ResearchAndDevelopment.GetExperiment ( string experimentID )

inlinestatic

Get a ScienceExperiment from known experiments

Parameters

experimentID

Returns

static List<string> ResearchAndDevelopment.GetExperimentIDs ( )

inlinestatic

static ScienceSubject ResearchAndDevelopment.GetExperimentSubject	(	ScienceExperiment	experiment,
		ExperimentSituations	situation,
		CelestialBody	body,
		string	biome,
		string	displaybiome
	)

inlinestatic

Returns a reference to the science subject concerning this experiment at the given circumstances.

Parameters

experiment
situation
body

Returns

static ScienceSubject ResearchAndDevelopment.GetExperimentSubject	(	ScienceExperiment	experiment,
		ExperimentSituations	situation,
		string	sourceUId,
		string	sourceTitle,
		CelestialBody	body,
		string	biome,
		string	displaybiome
	)

inlinestatic

Returns a science subject concerning this experiment and source at the given circumstances.

Parameters

experiment	ScienceExperiment for the subject
situation	Situation string
sourceUId	Part UId
sourceTitle	Title of the Subject
body	Celestial Body involved
biome	The Biome name
displaybiome	The localized Biome name

Returns

static string ResearchAndDevelopment.GetMiniBiomedisplayNameByScienceID	(	string	TagID,
		bool	formatted
	)

inlinestatic

Returns a mini biome displayName by passed in ScienceID (LandedAt string with no spaces)

Parameters

TagID	ScienceID (IE:no spaces etc from the science ID format experiment
formatted	If true will return localized text, if false will return the localized tag field text

Returns: MiniBiome displayName or passed in string if not found

static string ResearchAndDevelopment.GetMiniBiomedisplayNameByUnityTag	(	string	TagID,
		bool	formatted
	)

inlinestatic

Returns a mini biome displayName by passed in Unity Tag

Parameters

TagID	Unity Tag name
formatted	If true will return localized text, if false will return the localized tag field text

Returns

static List<string> ResearchAndDevelopment.GetMiniBiomeTags ( CelestialBody cb )

inlinestatic

Returns a list of the MiniBiome Tags in English for a given CelestialBody

Parameters

cb

Returns

static List<string> ResearchAndDevelopment.GetMiniBiomeTagsLocalized ( CelestialBody cb )

inlinestatic

Returns a list of the MiniBiome Tags in English for a given CelestialBody

Parameters

cb	The CB to query
includeMiniBiomes	True to return the minibiomes as well

Returns

static float ResearchAndDevelopment.GetNextScienceValue	(	float	dataAmount,
		ScienceSubject	subject,
		float	xmitScalar = `1.0f`
	)

inlinestatic

Returns the scientific output of submitting the given amount of data on a subject a second time around. Use for previewing devaluation taking into account transmission loss.

Parameters

dataAmount	The Data Amount
subject	The ScienceSubject
xmitScalar	The transmission value. Omit if not transmitting

static float ResearchAndDevelopment.GetReferenceDataValue	(	float	dataAmount,
		ScienceSubject	subject
	)

inlinestatic

Returns the 'reference' value for the given amount of data on a subject. Useful for progress bars and such.

Parameters

dataAmount
scienceValueRatio
subject

Returns

static string ResearchAndDevelopment.GetResults ( string subjectID )

inlinestatic

< prioritized search to find experiment results.

static float ResearchAndDevelopment.GetScienceValue	(	float	dataAmount,
		ScienceSubject	subject,
		float	xmitScalar = `1.0f`
	)

inlinestatic

Returns the scientific value of the given amount of data on a subject, taking into account its transmission yield

Parameters

dataAmount	The amount of data
subject	The subject the data is about

///

Parameters

xmitScalar The transmission value. Omit if not transmitting.

Returns

static float ResearchAndDevelopment.GetScienceValue	(	float	dataAmount,
		float	scienceValueRatio,
		ScienceSubject	subject,
		float	xmitScalar = `1.0f`
	)

inlinestatic

Returns the scientific value of the given amount of data on a subject, taking into account its transmission yield

Parameters

dataAmount	The amount of data
scienceValueRatio	A Maximum scienceValue percentage to apply to the science data.
subject	The subject the data is about

///

Parameters

xmitScalar The transmission value. Omit if not transmitting.

Returns

static List<string> ResearchAndDevelopment.GetSituationTags ( )

inlinestatic

Returns a list of the valid Experiment Situations

Returns

static List<string> ResearchAndDevelopment.GetSituationTagsDescriptions ( )

inlinestatic

Returns a list of Situation Tags Description attributes (localized strings of the Experiment Situations).

Returns

static ScienceSubject ResearchAndDevelopment.GetSubjectByID ( string subjectID )

inlinestatic

static List<ScienceSubject> ResearchAndDevelopment.GetSubjects ( )

inlinestatic

static float ResearchAndDevelopment.GetSubjectValue	(	float	subjectScience,
		ScienceSubject	subject
	)

inlinestatic

Returns the scientific value of a subject for the given amount of science done in it. Does not actually modify the subject's value. Use for previewing devaluation and such.

static RDTech.State ResearchAndDevelopment.GetTechnologyState ( string techID )

inlinestatic

Find if the given tech is available

Parameters

techID

Returns

static string ResearchAndDevelopment.GetTechnologyTitle ( string techID )

inlinestatic

Returns localized tech title string

Parameters

techID

Returns

ProtoTechNode ResearchAndDevelopment.GetTechState ( string techID )

inline

Get the protoNode representation of this tech node. Will be null if the tech is still unavailable.

Parameters

techID

Returns

static bool ResearchAndDevelopment.IsExperimentalPart ( AvailablePart ap )

inlinestatic

override void ResearchAndDevelopment.OnAwake ( )

inlinevirtual

< this will be overwritten by loaded data if any exists. If not, we can assume this is a newly started game.

Reimplemented from ScenarioModule.

void ResearchAndDevelopment.OnDestroy ( )

inline

override void ResearchAndDevelopment.OnLoad ( ConfigNode node )

inlinevirtual

< start it off with enough science to get the first node.

Reimplemented from ScenarioModule.

override void ResearchAndDevelopment.OnSave ( ConfigNode node )

inlinevirtual

Reimplemented from ScenarioModule.

static string ResearchAndDevelopment.PartAssignmentSummary ( )

inlinestatic

static bool ResearchAndDevelopment.PartModelPurchased ( AvailablePart ap )

inlinestatic

static bool ResearchAndDevelopment.PartTechAvailable ( AvailablePart ap )

inlinestatic

static void ResearchAndDevelopment.RefreshTechTreeUI ( )

inlinestatic

static void ResearchAndDevelopment.RemoveExperimentalPart ( AvailablePart ap )

inlinestatic

static bool ResearchAndDevelopment.ResearchedValidContractObjectives ( params string[] objectiveTypes )

inlinestatic

static bool ResearchAndDevelopment.ResearchedValidContractObjectives	(	List< string >	objectiveTypes,
		bool	copy = `true`
	)

inlinestatic

static string ResearchAndDevelopment.ScienceTransmissionRewardString	(	float	amount,
		TransactionReasons	reason = `TransactionReasons.ScienceTransmission`
	)

inlinestatic

void ResearchAndDevelopment.SetScience	(	float	value,
		TransactionReasons	reason
	)

inline

void ResearchAndDevelopment.SetTechState	(	string	techID,
		ProtoTechNode	techNode
	)

inline

Sets the protoNode representation of the given tech node. Used to save a new tech after it's been unlocked.

Parameters

techID
techNode

void ResearchAndDevelopment.Start ( )

inline

float ResearchAndDevelopment.SubmitScienceData	(	float	dataAmount,
		ScienceSubject	subject,
		float	xmitScalar = `1.0f`,
		ProtoVessel	source = `null`,
		bool	reverseEngineered = `false`
	)

inline

Submit Data to be converted into science.

Parameters

dataAmount	The amount of data being sent.
subject	The subject the data is about.
xmitScalar	The transmission multiplier, omit if not transmitting.
source	The source ProtoVessel the science data came from on recovery
reverseEngineered	If the science data was reverse engineered on vessel recovery

Returns: The amount of science earned.

float ResearchAndDevelopment.SubmitScienceData	(	float	dataAmount,
		float	scienceValueRatio,
		ScienceSubject	subject,
		float	xmitScalar = `1.0f`,
		ProtoVessel	source = `null`,
		bool	reverseEngineered = `false`
	)

inline

Submit Data to be converted into science.

Parameters

dataAmount	The amount of data being sent.
scienceValueRatio	A Maximum scienceValue percentage to apply to the science data.
subject	The subject the data is about.
xmitScalar	The transmission multiplier, omit if not transmitting.
source	The source ProtoVessel the science data came from on recovery
reverseEngineered	If the science data was reverse engineered on vessel recovery

Returns: The amount of science earned.

< Only post a message if in flight. All other scenes will show a complete dialog.

void ResearchAndDevelopment.UnlockProtoTechNode ( ProtoTechNode node )

inline

Member Data Documentation

Func<float, ScienceSubject, float> ResearchAndDevelopment.GetReferenceDataValueFunc

static

Initial value:

= (float dataAmount, ScienceSubject subject) =>
    {
        return dataAmount / subject.dataScale * subject.subjectValue;
    }

Overridable function for getting the reference data value of a science subject.

Func<float, ScienceSubject, float> ResearchAndDevelopment.GetSubjectValueFunc

static

Initial value:

= (float subjectScience, ScienceSubject subject) =>
    {
        return Mathf.Max(0f, 1f - subjectScience / subject.scienceCap);
    }

Overridable function for getting the value of the given science subject, given the current amount of science done for it.

ResearchAndDevelopment ResearchAndDevelopment.Instance

static

Property Documentation

float ResearchAndDevelopment.Science

get

The documentation for this class was generated from the following file:

KSP/Assets/Scripts/Scenarios/Career Modules/R&D/ResearchAndDevelopment.cs

Public Member Functions

Static Public Member Functions

Static Public Attributes

Properties

Additional Inherited Members

Member Function Documentation

Member Data Documentation

Property Documentation
